FREEDOM HR-DUV

Home / Products / OEM Spectrometers

Compact deep UV OEM spectrometer

FREEDOM HR-DUV offers the perfect balance between compact size and high resolution in your instrument design due to the use of Ibsen Photonics’ unique transmission grating technology. The spectrometer is robust and almost athermal and can operate under demanding environmental conditions.

Furthermore, the FREEDOM HR-DUV spectrometers support a wavelength range down to 178 nm with high sensitivity and it is fitted with valves for purging with inert gases.

Key benefits

  • Resolves closely spaced peaks

  • Ideal for compact and portable instrument integration

  • Improved SNR in time-gated measurements

  • Achieves high SNR across the entire spectrum

Key features

  • 178 nm to 409 nm wavelength range

  • Numerical aperture of 0.11

  • Resolution: 0.3 nm (typical)

  • Footprint of 61 mm x 65 mm x 19 mm

  • Ideal for compact LIBS instruments

  • Valves for purging with inert gas

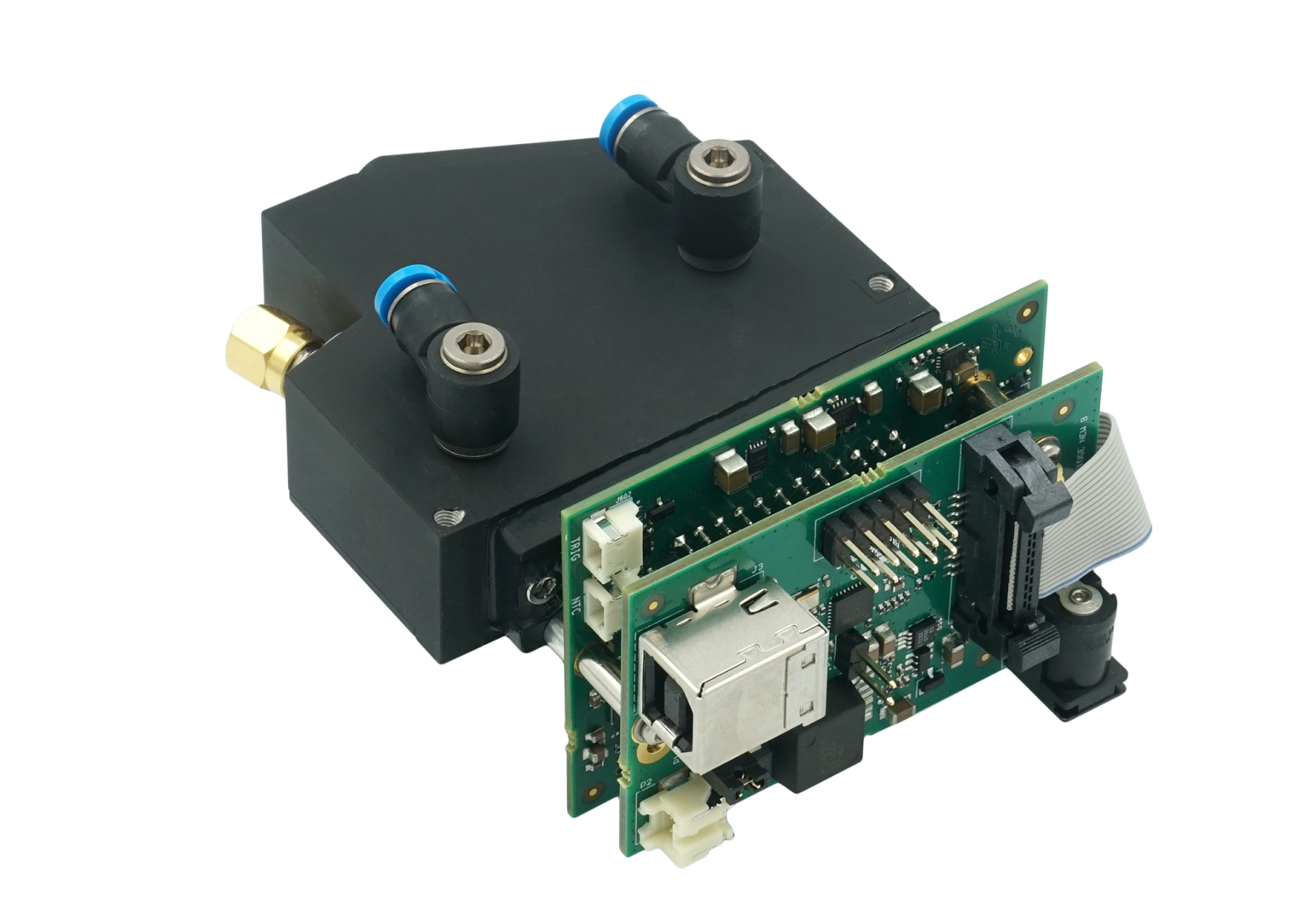

  • FREEDOM DUV w. bended nipples for purging
  • FREEDOM DUV w. bended nipples for purging
  • FREEDOM DUV w. bended nipples for purging
  • FREEDOM DUV w. bended nipples for purging
  • FREEDOM DUV w. bended nipples for purging

Specifications

ParameterUnitFHW-380
Wavelength rangenm178 - 409
Resolution (typical)nm0.3
Slit dimensionsμm x μm10 x 750
Numerical aperture0.11
Optical inputSMA
DetectorHamamatsu S11156-2048-02
Number of pixels2048
Electrical interfaceSPI or USB
Dimensionsmm x mm x mm61 x 65 x 19
Valves for purging with inert gasYes
Temperature induced shiftnm / o C< 0.02
Operating temperature rangeo C0 to 50
Storage temperature rangeo C-40 to 65

Developer’s Kit

The FREEDOM HR-DUV is offered with a Developer’s kit for a plug and play experience.

The Developer’s Kit allows you to easily demonstrate the performance of the spectrometer without the need for complex hardware integration or time-consuming programming.

Benefits of transmission grating based spectrometers

The FREEDOM HR is a series of high-resolution spectrometers. This is obtained by a unique mirror-grating-mirror design utilizing Ibsen Photonics’ high dispersion transmission gratings. Furthermore, the spectrometers provide high efficiency and high throughput.
