LIBS spectrometers
for system integration
Choosing the right LIBS spectrometer for your application

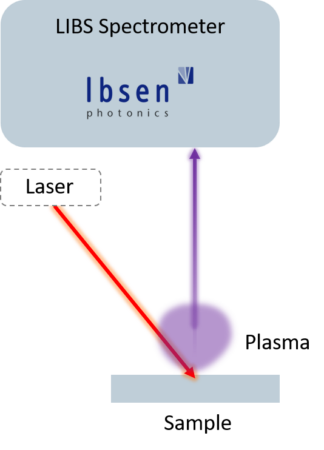

Instruments for Laser Induced Breakdown Spectroscopy (LIBS) consist of a laser source and a LIBS spectrometer. Depending on your application, there are many factors to consider when choosing the right LIBS spectrometer.
Generally, LIBS spectrometers must resolve sharp spectral peaks corresponding to atomic transitions occurring in the plasma. The required spectral range depends on the specific atomic elements in the sample that need to be analyzed. Additionally, since the plasma only exists for a few microseconds after the laser pulse is fired, the spectrometer must be fast, sensitive, and capable of accurately synchronizing with the laser pulses.
To support this, our LIBS spectrometers offer the highest sensitivity on the market, combined with high resolution and accurate triggering. Our spectrometers are designed for use with various detectors, tailored to LIBS system needs, and our compact DISB electronics allow precise time gating. For applications down to 178 nm, Ibsen Photonics’ LIBS spectrometers furthermore include valves for purgin the spectrometer with an inert gas.
Highly efficient, broadband gratings for LIBS spectrometers
The high sensitivity of our LIBS spectrometers is obtained through in-house manufactured transmission gratings.
Our gratings provide unparalleled high broadband efficiency, enabled by optimized groove profiles, a thin optical path, and a high refractive index contrast. The inherent nature of fused silica ensures our gratings are environmentally stable while working in transmission, providing angle insensitivity and vibrational stability.
We design our LIBS spectrometers to perfectly match and supplement the performance of our gratings, but we also supply gratings for use in your own LIBS spectrometer design.
Our LIBS spectrometers
| Parameter | Unit | FREEDOM HR-DUV | FREEDOM HR/C-UV | FREEDOM HR/C-VIS | FREEDOM HR/C-VISNIR |
|---|---|---|---|---|---|
| Wavelength range | nm | 178 - 409 | 190 - 435 | 360 - 830 | 475 - 1100 |
| Resolution (FREEDOM C) | nm | - | 0.15 | 0.3 | 0.4 |
| Resolution (FREEDOM HR) | nm | 0.3 | 0.2 | 0.4 | 0.6 |
| Numerical aperture | 0.11 | 0.11 | 0.11 | 0.11 | |
| Optical input | SMA | SMA | SMA | SMA | |
| Detector options (FREEDOM C) | - | Hamamatsu S13496 | Hamamatsu S13496 | Hamamatsu S13496 | |
| Detector options (FREEDOM HR) | Hamamatsu S11156-2048-02 | Hamamatsu S11639N-01 Hamamatsu S10420-1106 Hamamatsu S11156-2048-02 | Hamamatsu S11639N-01 Hamamatsu S10420-1106 Hamamatsu S11156-2048-02 | Hamamatsu S11639N-01 Hamamatsu S10420-1106 Hamamatsu S11156-2048-02 |
|
| Electrical interface | SPI or USB | SPI or USB | SPI or USB | SPI or USB | |
| Dimensions | mm x mm x mm | 61 x 65 x 19 | 61 x 65 x 19 | 61 x 65 x 19 | 61 x 65 x 19 |
| Valves for inert gas purging | Yes | No | No | No |
Ibsen as your LIBS spectrometer manufacturer
At Ibsen, we understand that volume manufacturing of application-specific LIBS spectrometers is a completely different task than building a single scientific instrument. We are an ISO 9001 and 13485 certified manufacturer with decades of experience in volume manufacturing of OEM spectrometers.
Our emphasis is on the high and consistent quality of our products, ensured through our proven, robust designs and 100% outgoing inspection. Especially for laser induced breakdown spectroscopy, our low unit-to-unit variation can help you achieve a lean manufacturing process and deliver products with a consistently high quality to your customers.
Our spectrometer designs have undergone environmental qualification to ensure proper operation within specified thermal, humidity, vibrational, and drop test conditions.
We have established long-term relationships with a range of qualified sub-suppliers, ensuring you a stable supply chain. Furthermore, we offer our OEM customers flexible supply options, typically based on frame order contracts or Kanban agreements.
All in all, Ibsen Photonics is a well-established spectrometer supplier that enables you to focus on your core business.
Advantages working with Ibsen:
