PCG-1300/785-931

Home/Products/Transmission gratings/Pulse compression gratings

1300 l/mm Transmission pulse compression grating for 785 nm wavelengths

Fused Silica Transmission Pulse Compression Gratings – unbeatable energy/power damage threshold combined with high-efficiency.

Features and benefits

  • 100% Fused silica gratings provide the highest energy/power damage threshold, also in the UV

  • Environmentally and thermally stable

  • High diffraction efficiency

  • Available for 1064 nm and 800 nm – or custom wavelengths

  • Low wavefront distortion

  • Low stray light

PCG-1300-785-931
Parameter Specification
Grating resolution1300 lines / mm
Resolution accuracy+/- 0.1 line / mm
Central wavelength of operation785 nm
Operating polarizationTE (s)
Dispersion0.087 degrees/nm at 785 nm
Incidence angleLittrow (30.7 degrees)

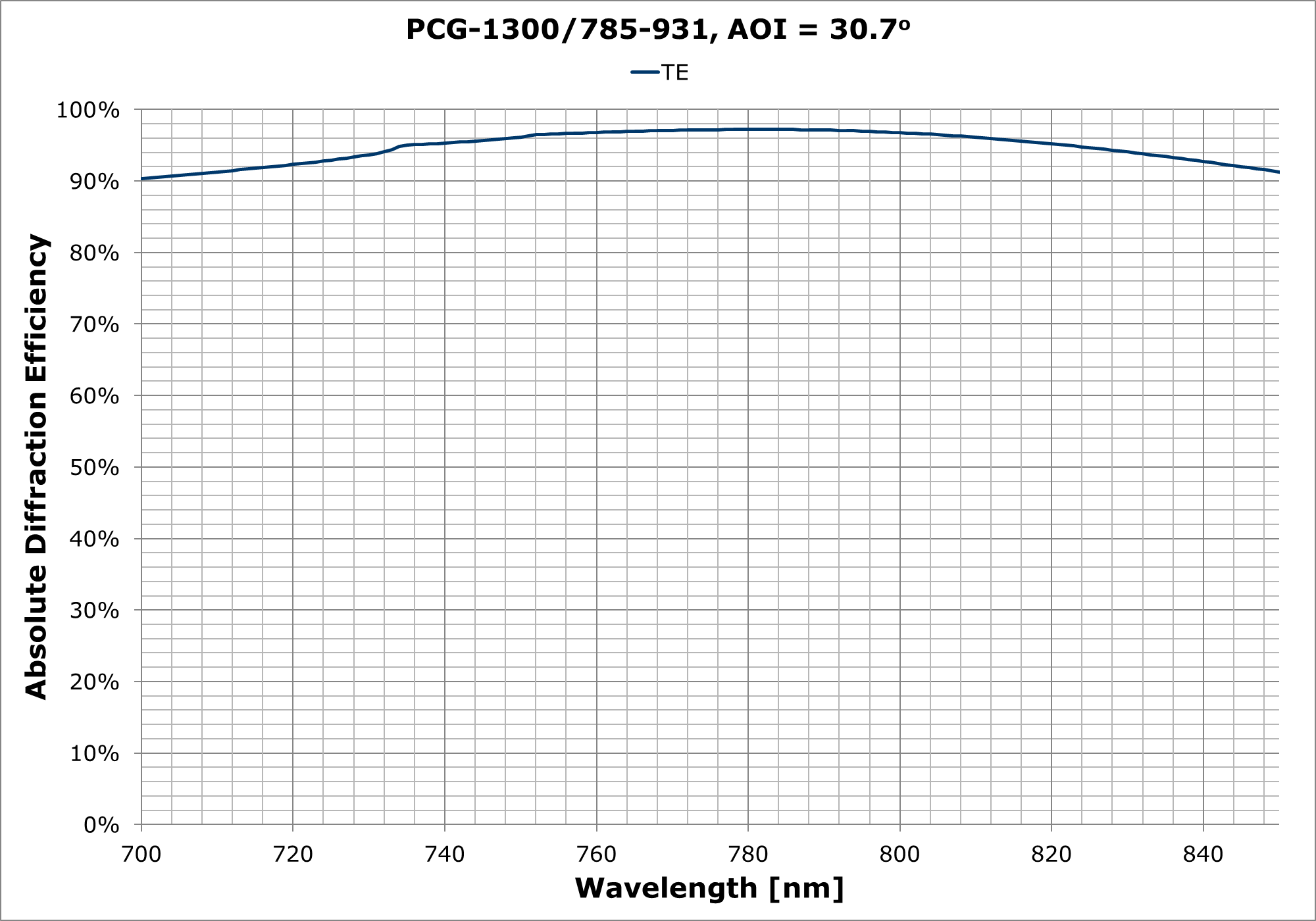

Diffraction efficiency>94%
MaterialUV grade fused silica plus dielectric back-side AR coating
Grating size100 mm x 30 mm
Substrate size105 mm x 35 mm
Substrate thickness 1 mm

For any other grating sizes or other customized parameters, please use the forms at the bottom of the page to specify your requirements for a discussion or quotation.

$8.799,13

Quantity based pricing table

Min Max Unit Price
2 and more € 5,995.00
