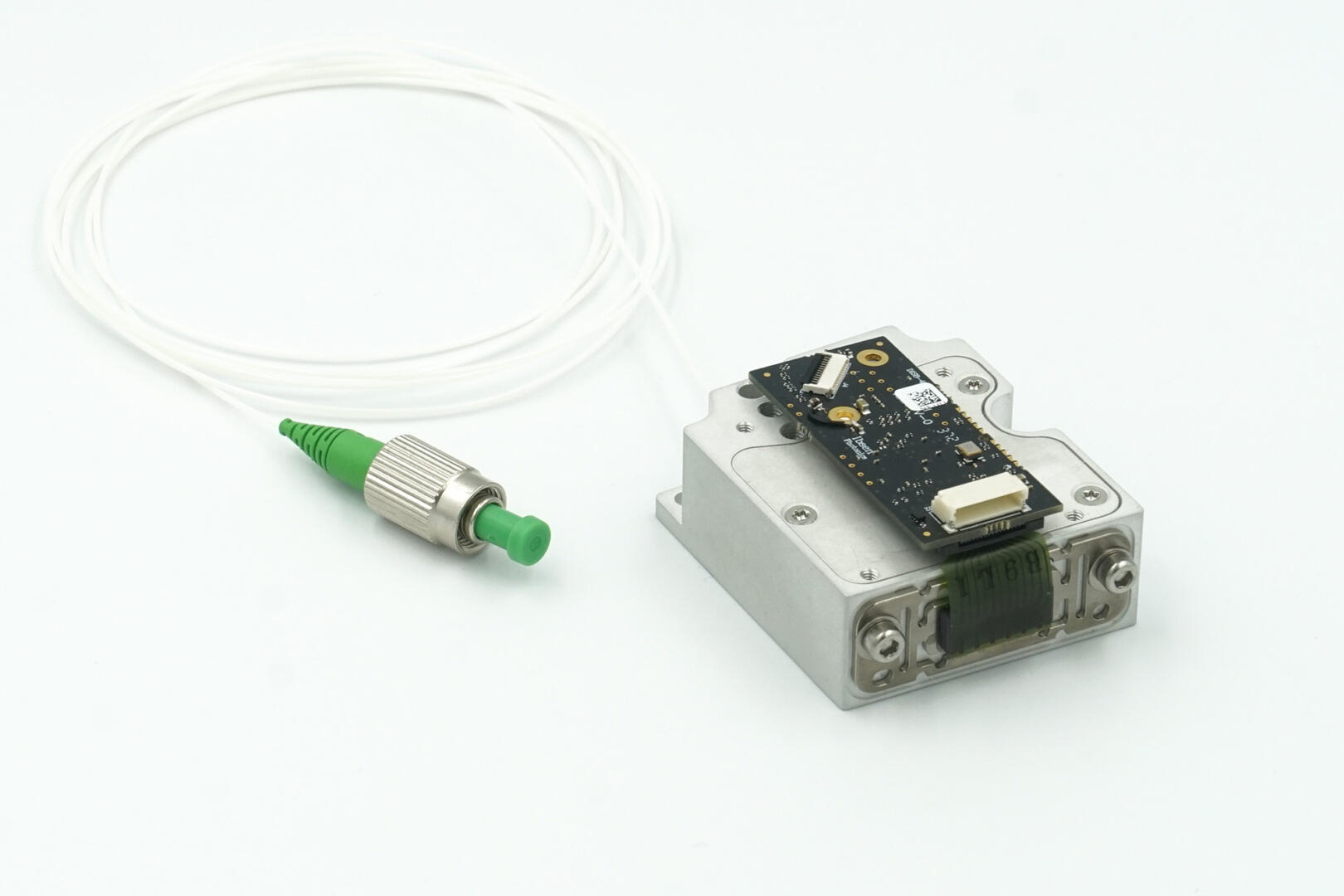

I-MON 256 C DISB Interrogation monitor (1520 - 1579 nm)

The I-MON 256 C DISB Interrogation Monitors offer realtime spectrum monitoring of Fiber Bragg Grating (FBG) sensors in the 1520-1579 nm wavelength range. High spectrometer resolution combined with broad wavelength range provides high resolution interrogation monitors allowing measurement of a large number of FBG sensors.

Equipped with Ibsen DISB-400 electronics, the analouge video output from the detector is converted to a 16-bit digital signal that can be read over the SPI interface.

Applications

  • Vibration analysis
  • Temperature measurements
  • Pressure monitoring
  • Strain measurements
I-MON 256 C DISB
ParameterUnit I-MON 256 C DISB
Maximum number of FBG sensors 36
Minimum FBG spacing pm 1600 pm
Wavelength rangenm1520 - 1579
Wavelength fit resolutionpm< 0.5
Repeatability (over any pol. state) pm3 (5 max)
Wavelength drift* pm / deg C 1 (3 max)
Power/Measurement dynamic rangedB 40/15
Input optical power range dBm -70 to -22
Measurement frequency kHz 3.5 max.
Electrical interfaceDISB-400 SPI interface
Number of pixels256
Size (LxWxD) mm 71 x 48 x 20.3
Operating temperaturedeg C0-70

(*) Note that by applying temperature control or temperature correction the wavelength accuracy over the entire temperature range can be improved.

Specifications are subject to change without prior notice. Design and specifications can be modified to suit a range of customer requirements

Download Product Sheets

Ibsen Product Sheets – I-MON 256 C DISB



A detailed Product Specification and User’s Manual are available upon request.
