DL-BP1-1501A SLED

Home / Products / Interrogation monitors / Light sources

DL-BP1-1501A SLED broadband 1550 nm light source for FBG sensing systems. The light source is a plug-and-play compact module built around a superluminescent LED, and is integrated with an optical circulator.

Contact Ibsen for volume prices below.

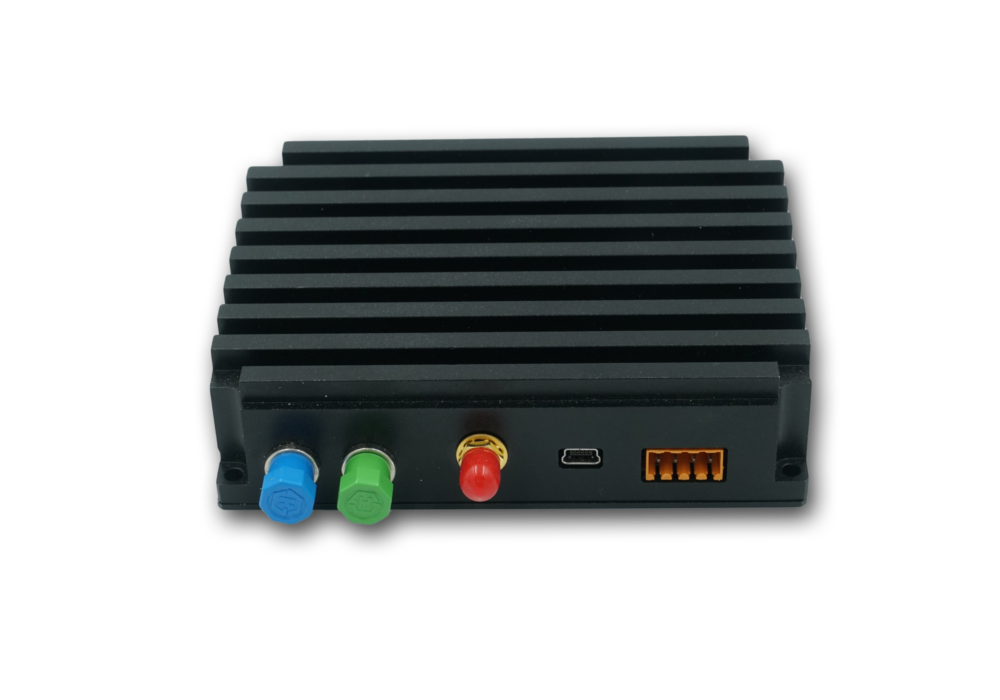

DL-BP1-1501A SLED

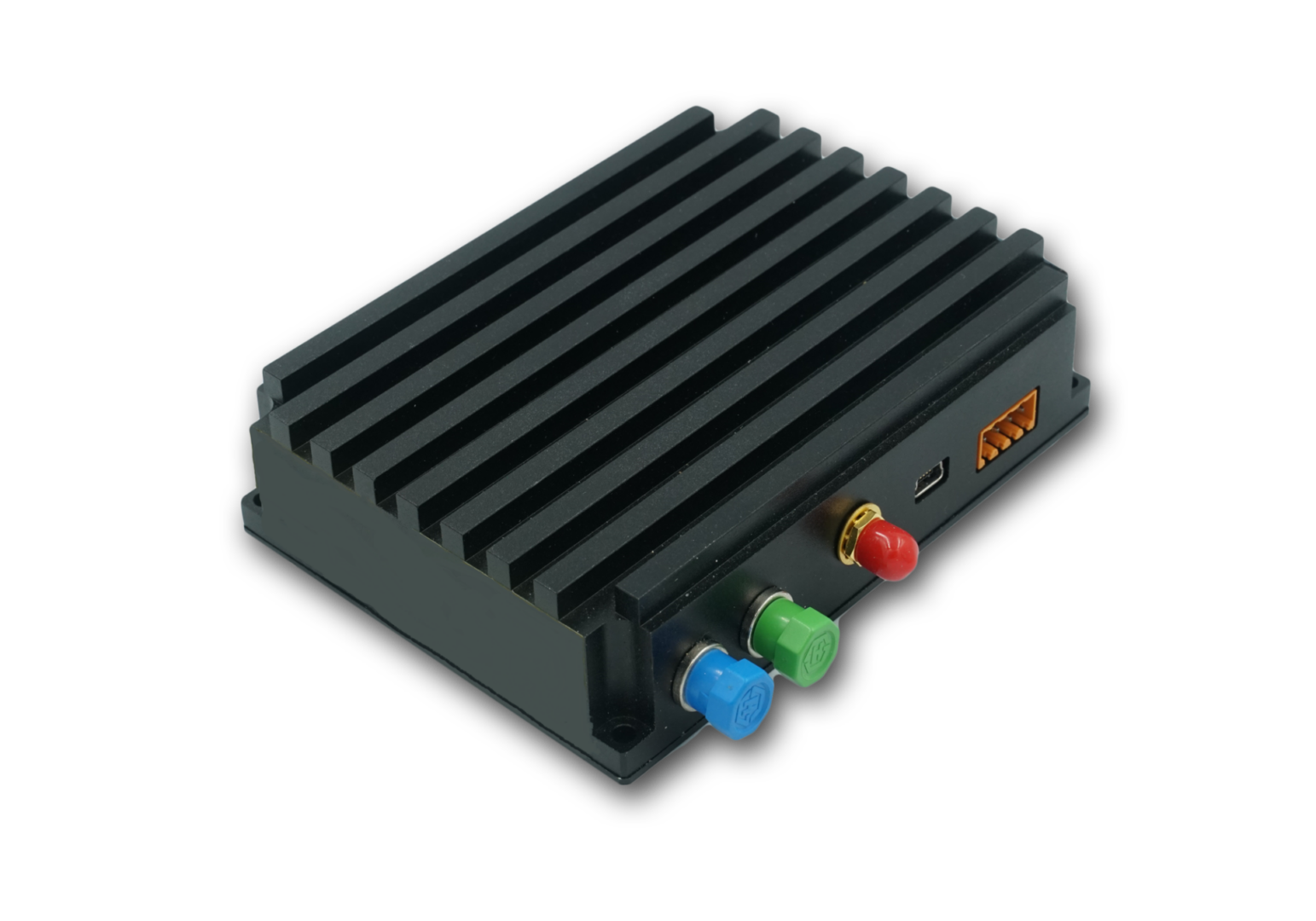

DL-BP1-1501A SLED - Image 2

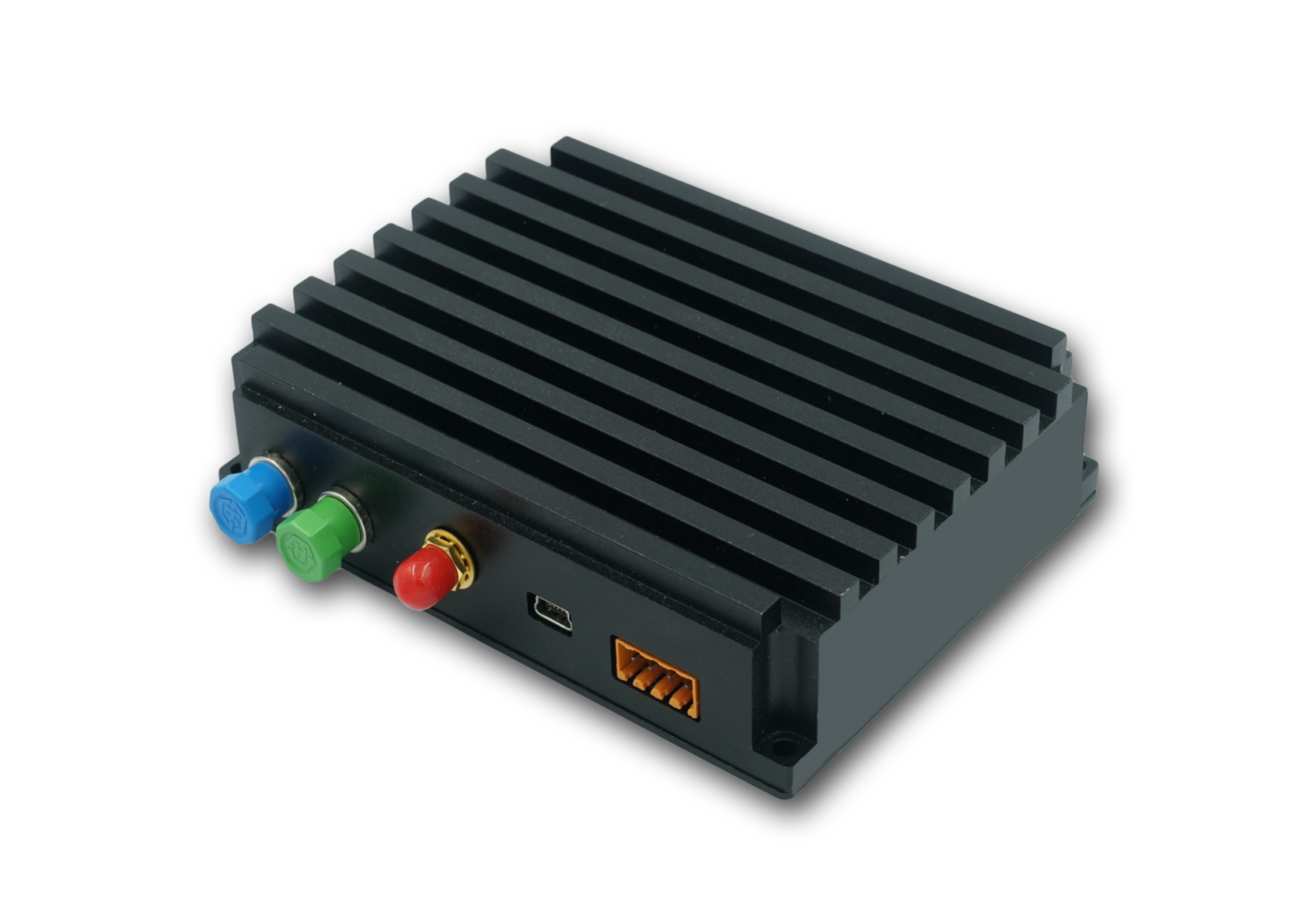

DL-BP1-1501A SLED - Image 3
Parameter Unit DL-BP1-1501A
Maximum optical powermW > 12
3 dB spectral widthnm > 70
Center wavelength (typical)nm1550
Electrical interface 4-pin terminal block
Control interfaceUSB Mini-B receptable
Size (LxWxD)mm120x90x30
Operating temperaturedeg C0 to 65
Storage temperaturedeg C-40 to 85

$3.698,10

Contact Ibsen for volume prices below.
