FREEDOM VIS-NIR

Home / Products / OEM spectrometers / VIS-NIR

Compact and cost-efficient OEM spectrometer modules for the VIS-NIR range

The FREEDOM VIS-NIR spectrometers offer a compact and cost-efficient spectrometer module for OEM manufacturers of analytical instruments that do not want to sacrifice performance and robustness for compactness.

Furthermore, the FREEDOM VIS-NIR spectrometers support many different detector systems which enables you to choose the best detector option for your specific application. FREEDOM even allows you to re-use already developed electronics and software for your favorite detector type.

Key benefits

  • Ideal for ultra-compact and portable instrument integration

  • Easy integration into existing handheld and other low weight devices

  • Tailor-made performance with flexible configuration options

Key features

  • 475 nm to 1100 nm wavelength range

  • Numerical aperture of 0.16

  • Configurable resolution from 1.7 nm to 12.5 nm

  • Footprint of 25 mm x 48 mm x 16 mm

  • Compact spectrometer
  • Compact spectrometer
  • Compact spectrometer
  • Compact spectrometer
  • Compact spectrometer

Specifications

ParameterUnitFST-101FST-305FST-380
Wavelength rangenm475 - 1100475 - 1100475 - 1100
Best resolution
(typical value, 12.5 μm slit)		nm1.72.22.2
Slit width optionsμm12.5, 35, 50, 70, 12512.5, 35, 50, 70, 12512.5, 35, 50, 70, 125
Slit heightμm250250250
Numerical aperture0.160.160.16
Optical inputSMASMASMA
DetectorHamamatsu S11639N-01Hamamatsu S10420-1006Hamamatsu S11156-2048-02
Number of used pixels~10001024~1000
Electrical interfaceSPI or USBSPI or USBSPI or USB
Dimensionsmm x mm x mm25 x 48 x 1625 x 48 x 1625 x 48 x 16
Temperature induced shiftnm / o C< 0.02< 0.02< 0.02
Operating temperature rangeo C0 to 500 to 500 to 50
Storage temperature rangeo C-40 to 65-40 to 65-40 to 65

Developer’s Kit

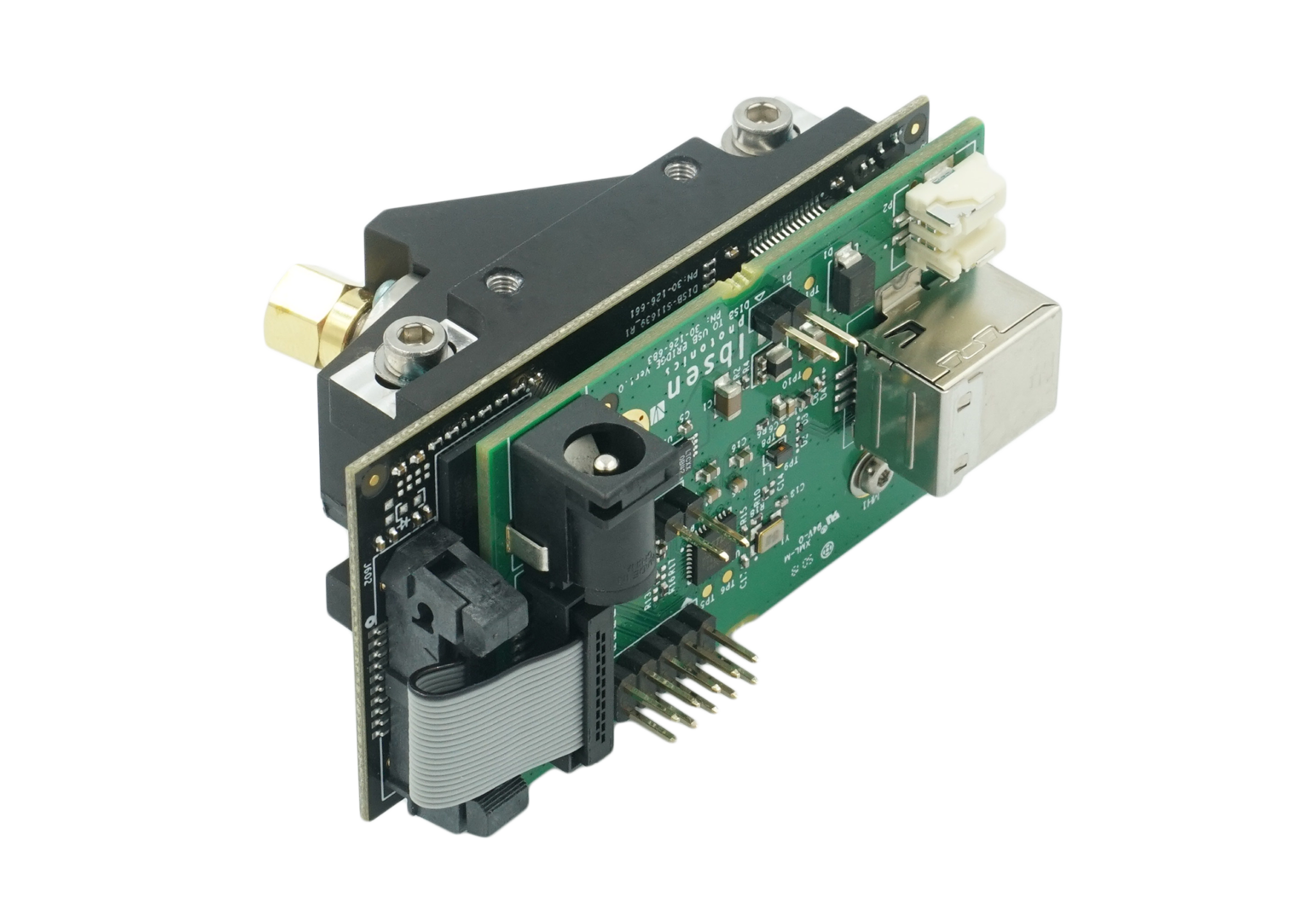

The FREEDOM VIS-NIR is offered with a Developer’s kit for a plug and play experience.

The Developer’s Kit allows you to easily demonstrate the performance of the spectrometer without the need for complex hardware integration or time-consuming programming.

Benefits of transmission grating based spectrometers

The FREEDOM is a series of versatile spectrometers. This is obtained by a unique mirror-grating-mirror design utilizing Ibsen Photonics’ high dispersion transmission gratings. Furthermore, the spectrometers provide high efficiency and high throughput, together with high resolution and a broad wavelength range.
